Large Rectangle Acoustic Enclosure
Large Rectangle Acoustic Enclosure

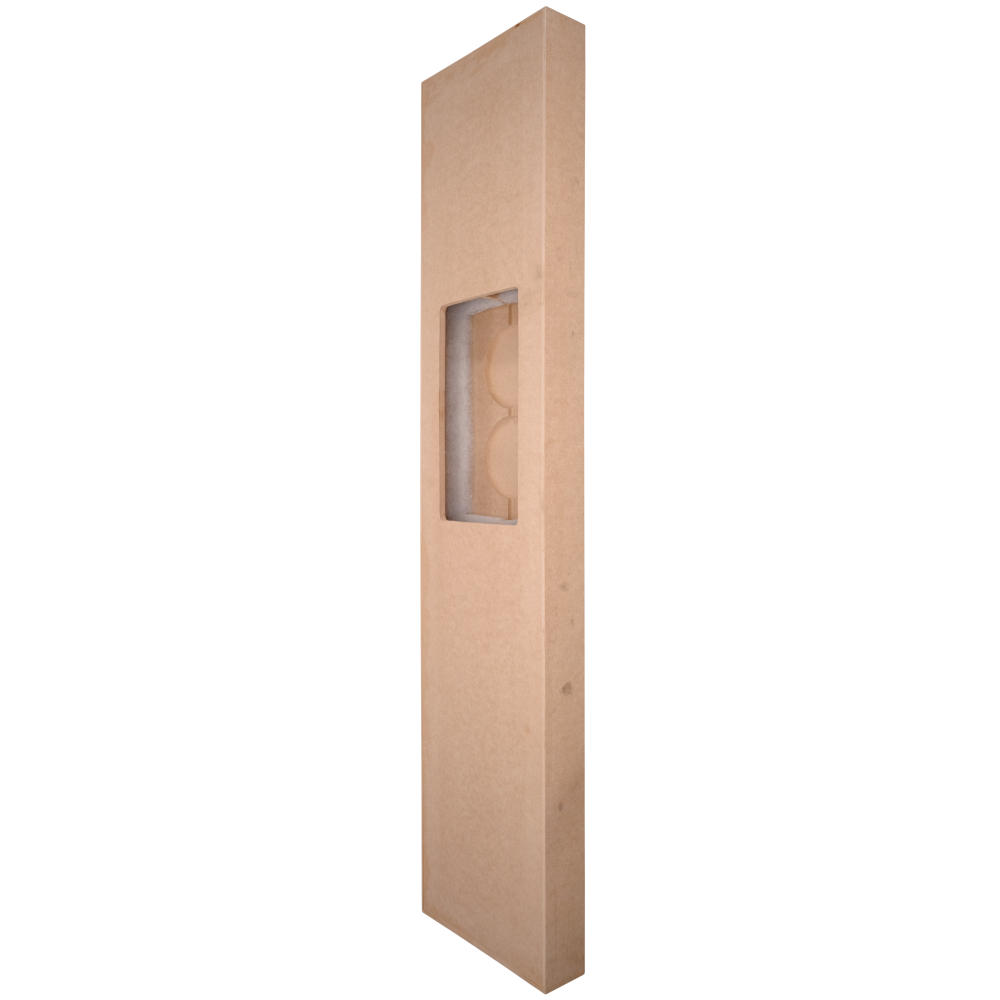

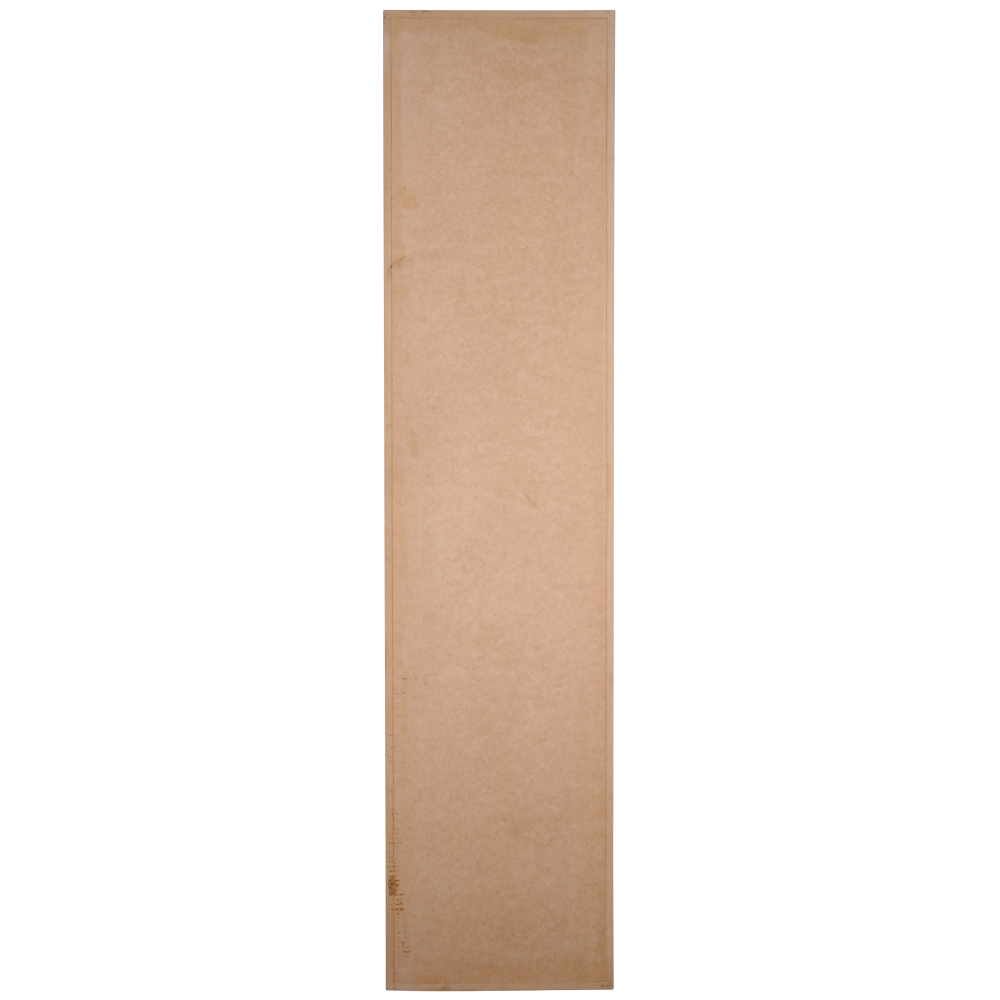

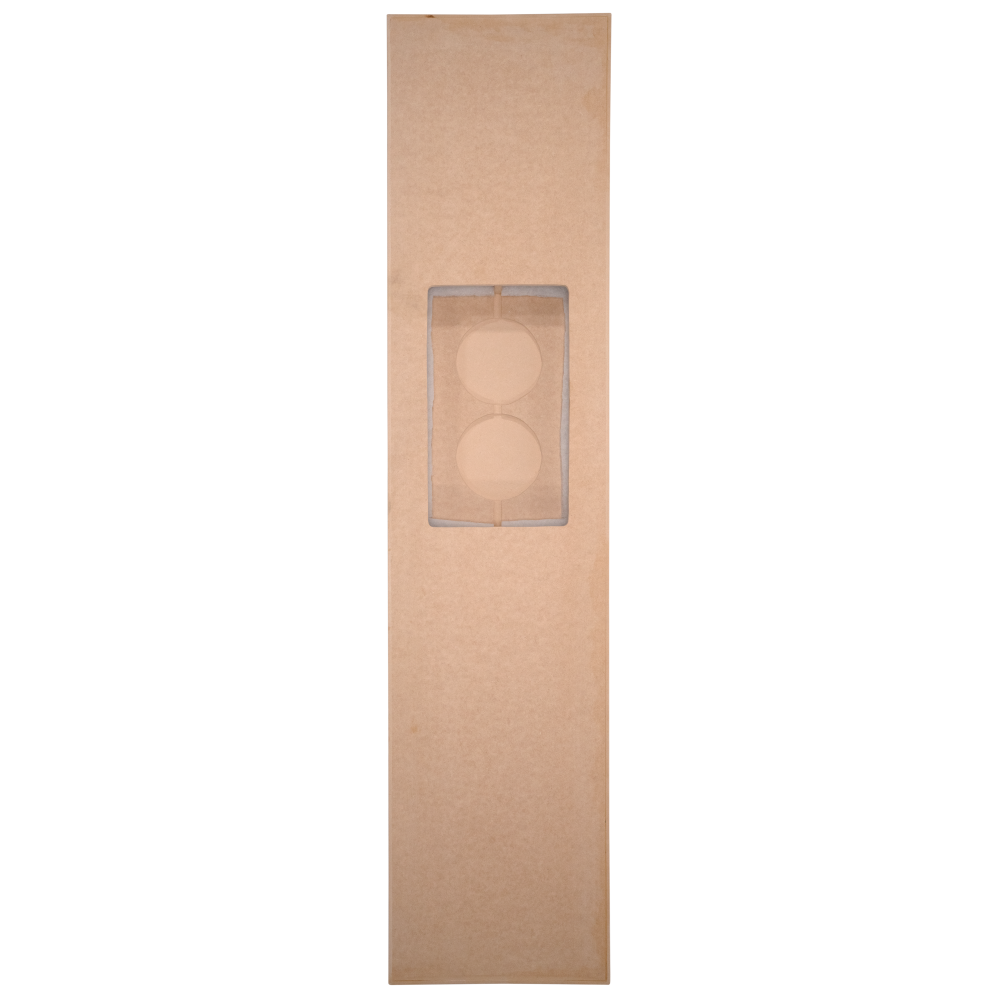

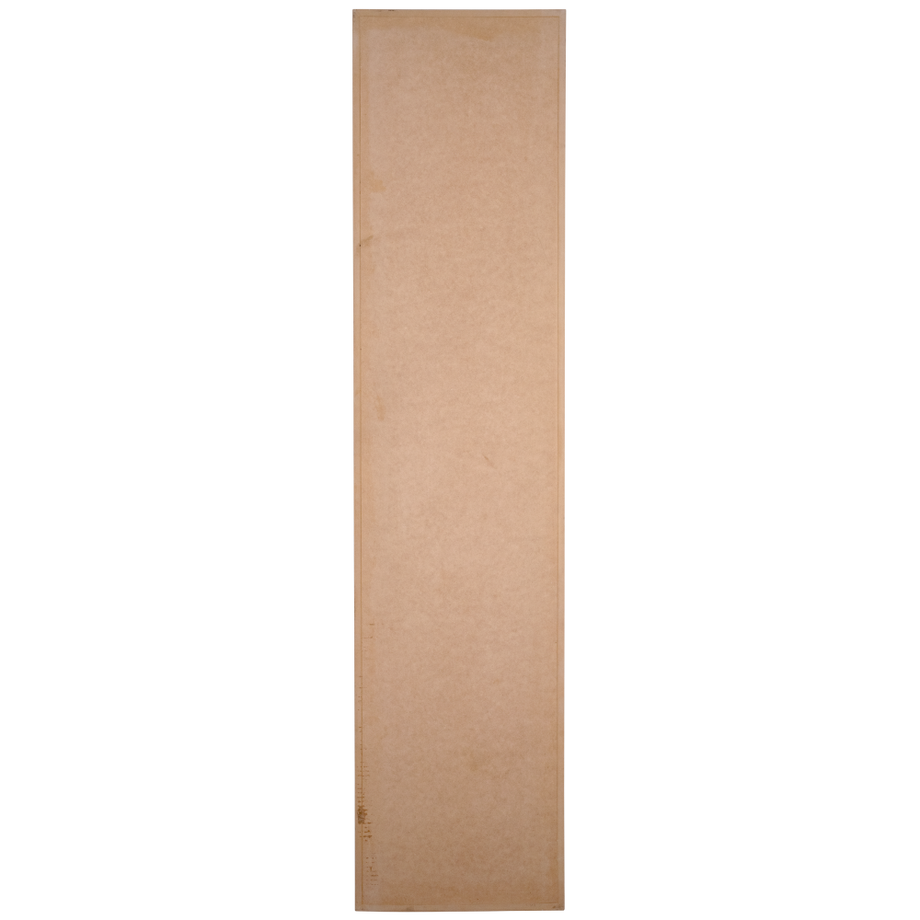

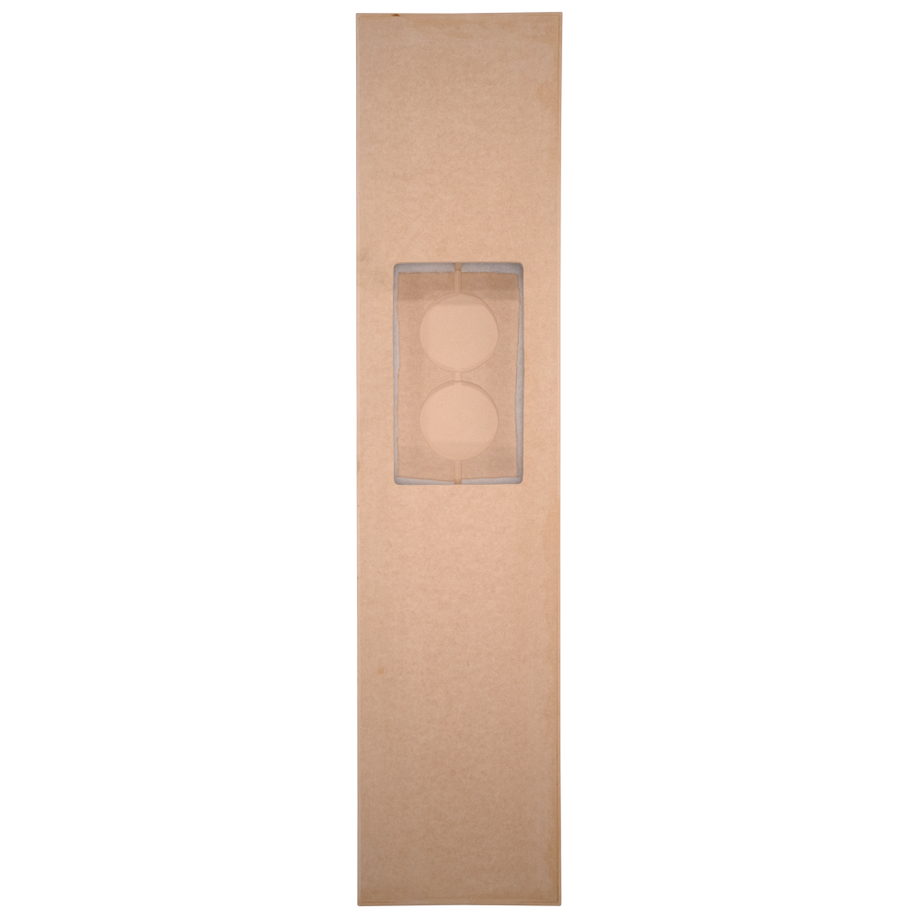

Large Rectangle Acoustic Enclosure features a fully-braced 1/2" MDF design that optimizes bass performance and provides 20dB sound containment for large rectangular speakers. To calculate total depth, add the thickness of wall material to the listed depth. It accommodates recommended speakers installed behind 1/2" or thicker drywall.
Key Features

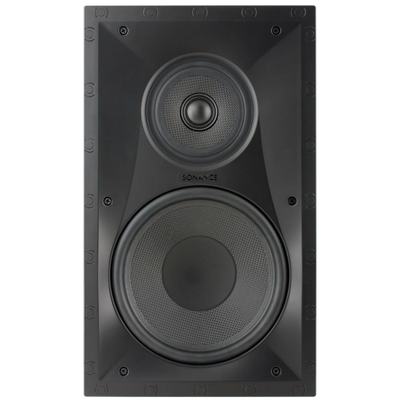

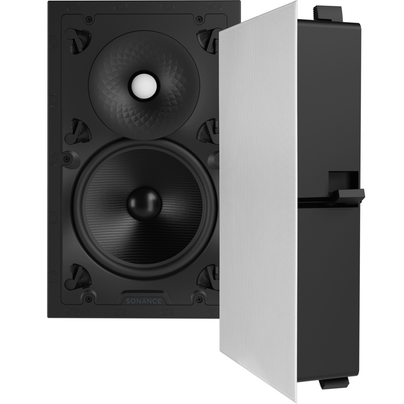

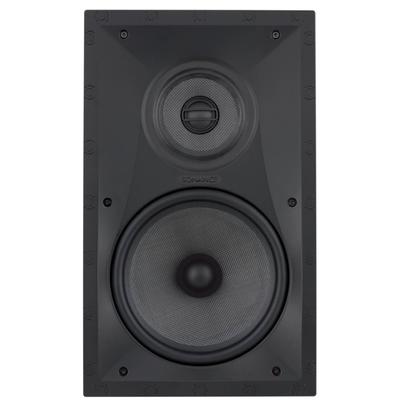

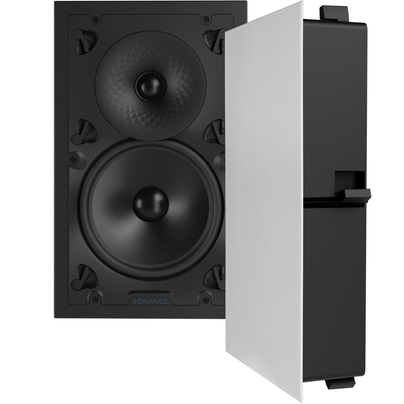

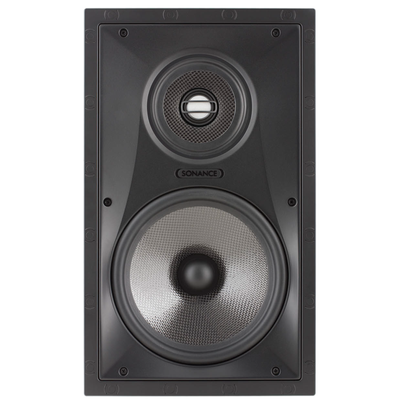

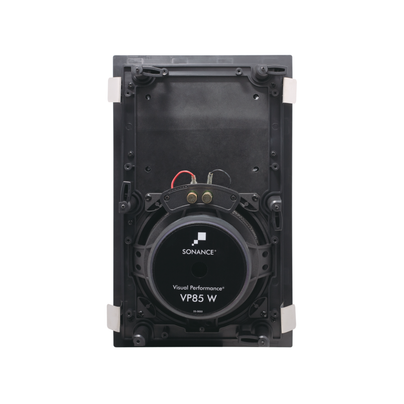

- Supports 8" In-Wall Rectangle Visual Exerience (VX), C Series and legacy Visual Performance (VP) speakers.
- Solid MDF construction enclosure gives the speaker a dedicated, sturdy back box.
- The wire entry hole is sealed with silicone sealant for a fully closed enclosure.
- Easy to mount: Screws directly to the stud or joist bay with standard wood screws.
- A quarter-inch hole in the top or bottom panel lets you route the speaker wire in and knot it inside the box.
- Pre-drywall installation: Goes in during rough-in, then the speaker drops into the box opening once the drywall is hung.
Specifications
SKU
91708 (Brown)
Dimensions (WxHxD)
14.0" x 60.0" x 3.5" (355.6mm x 1524.0mm x 88.9mm)
Cut-Out Dimensions (WxH)
8.7" x 14.7" (220.98mm x 373.38mm)
