SPL3-LCR-75

60207_product_image_SPL3-LCR-75_JAMES_Front_withgrille.tiff

SPL3-LCR_product_image_JAMES_grille close up.tiff

SPL3-LCR-75

Soundbar

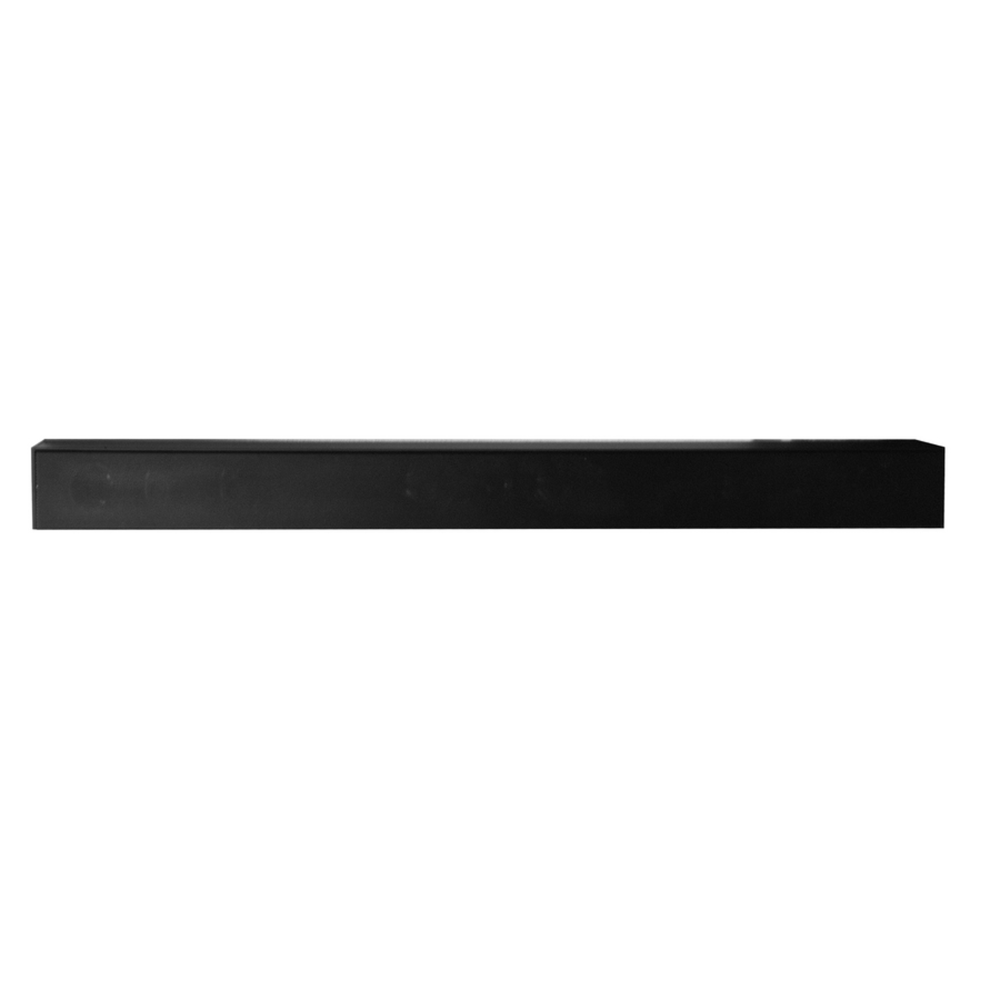

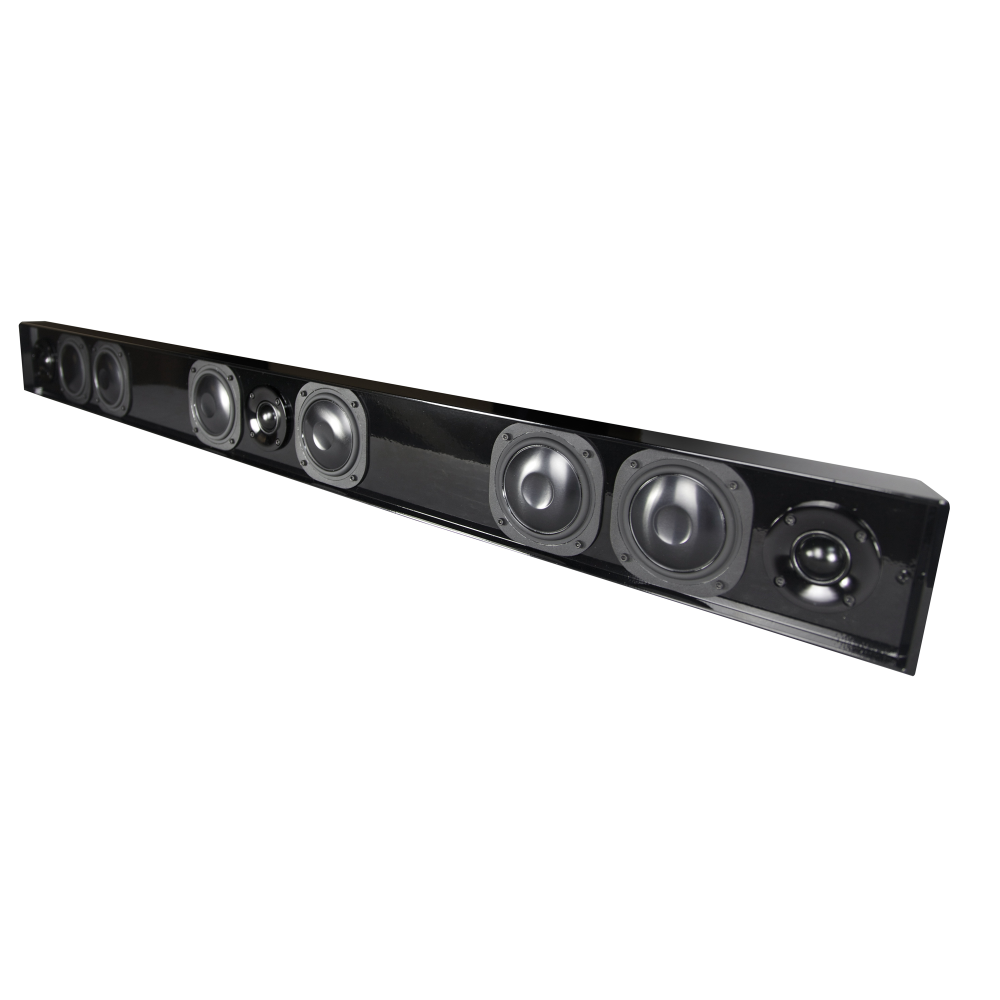

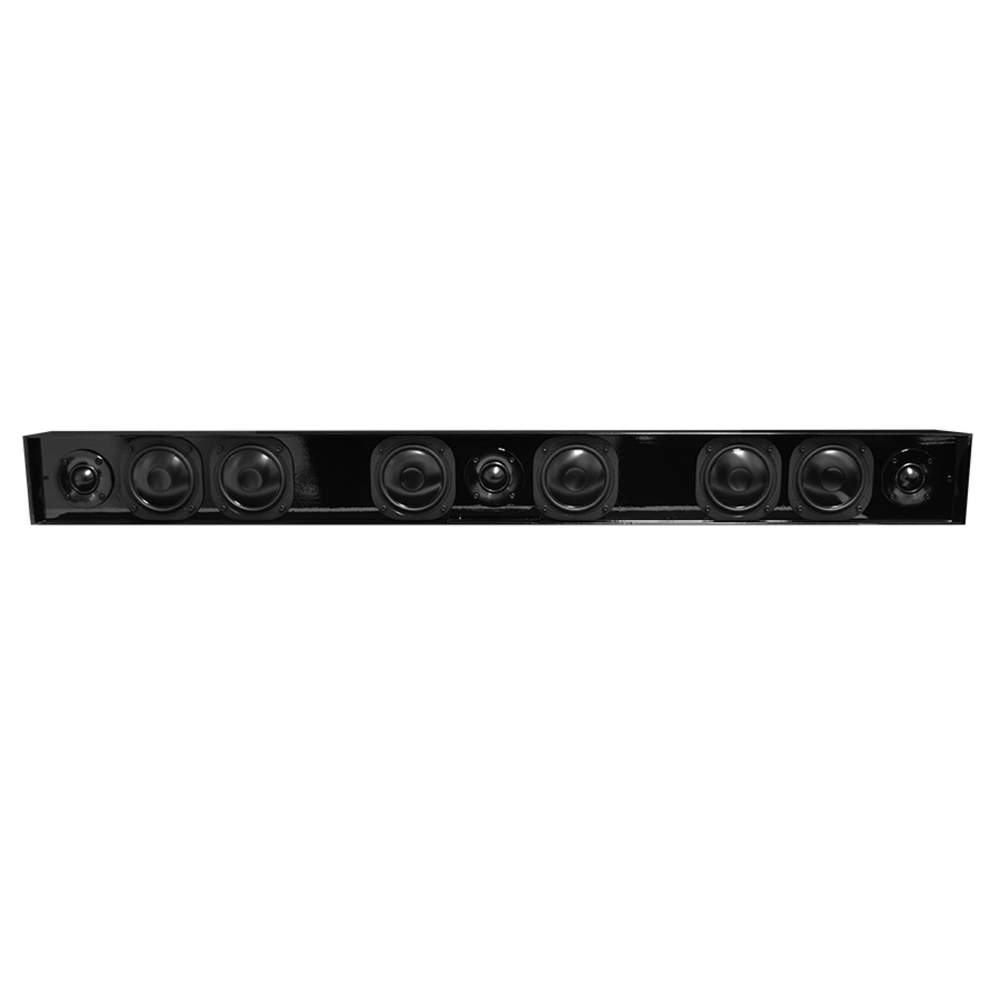

The James SPL3-LCR-75 (65.875"/1673mm) delivers premium audio in an ultra-thin 1.58" profile, perfectly complementing slim TVs. Featuring proprietary transducers, high-performance woofers and low-distortion tweeters provide exceptional sound dispersion across wide frequency ranges. This fixed-length speaker bar combines maximum audio performance with elegant design.

Specifications

SKU

60207

Speaker Tweeter

(3) 1" (25mm) Neodymium Soft Dome

Speaker Woofer

(6) 3.5" (89mm) High Excursion

Frequency Response (+/- 3db)

80Hz - 22kHz

Sensitivity

86dB (2.83V/1m)

Recommended Power Range

50 - 100W (Per Channel)

Enclosure

Aircraft Marine Grade Aluminum

Nominal Impedance (Ohms)

8 ohms

Dimensions (WxHxD)

65.88" x 4.0" x 1.58" (1673.23mm x 101.6mm x 40.13mm)

Copy All Specs
